X-BAR Quality
Print Module Delivers Superior Inline Printing
The X-BAR achieves superior quality for inline variable data printing with its precise nozzle control and high dpi capabilities, ensuring detailed and accurate variable-data printing.
Meet X-Bar: Quality Foundation
The X-BAR print module supports industries that need high-quality variable-data printing, such as direct mail, transactional print, and promotional materials.
Its modular design enhances inline printing quality by enabling precise and flexible print bar positioning, ensuring consistent alignment and superior print results across various commercial and industrial applications.
Resolution
The X-BAR achieves exceptional print clarity with a cross-process resolution of 1200 dpi across all options, offering precise printing capabilities at high speeds.
4.7-inch printbar
- 1000 feet per minute (300 meters per minute)
- 600 dpi
9.4-inch printbar
- 615 feet per minute (187.5 meters per minute)
- 600 dpi
Modular Design
The X-BAR’s modular design enhances inline printing quality by allowing precise and flexible printbar positioning, ensuring consistent alignment and superior print results for multiple applications.

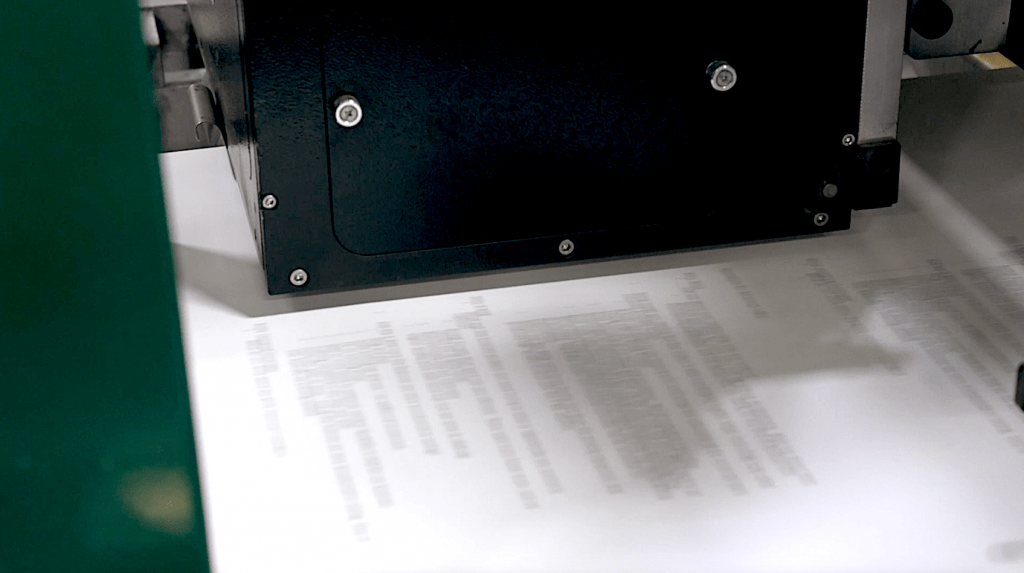

No Stitching
The X-BAR’s 9.4-inch print width eliminates the need for stitching or splicing, improving print quality, minimizing downtime, and boosting productivity by avoiding second passes.

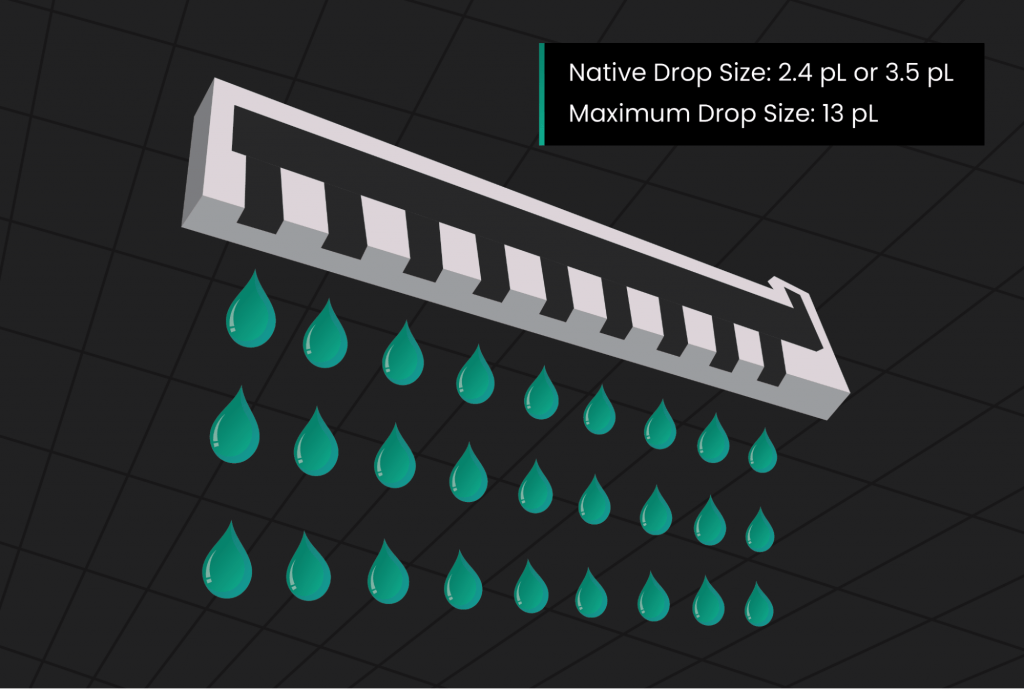

Drop Size
The X-BAR print module ensures superior print quality with advanced drop-on-demand inkjet technology, precision nozzles, and high-resolution printheads. It delivers precise imaging for font sizes as small as 2 points and 1D barcodes as small as 6.7 mils.
Precision Nozzles
Each industrial Silicon MEMs constructed printhead contains 2,048 nozzles.
- Native Drop Size: 2.4 pL or 3.5 pL
- Maximum Drop Size: 13 pL
X-BAR Benefits
Bottom-line Business Advantages Beyond Quality
X-BAR changes the game for your printing processes, delivering unmatched productivity gains and profitability enhancements that redefine your competitive position in the market.
Save More
Achieve significant savings on consumables and accelerate ROI with extended run times.
Reduce Downtime
Benefit from fast restarts, zero charge shorts, and streak-free operations for maximum uptime.
Inks and Substrates
Utilize advanced dye or pigment inks on various substrates, ensuring vibrant colors and consistent results.
Eco-Friendly
Reduce waste with water-based inks for sustainable, high-resolution printing.
Universal Controller
Achieve Superior Quality and Simplify Printing Management
The Universal Controller powers high-quality inkjet printing for the Fujifilm Samba G3L-based X-BAR with granular controls.
- Operates X-BAR and Versamark DS6240 printheads
- GUI Interface similar to the CS410
- Validate connections between controller and RIPs
- Tach and Cue Board with up to 8 inputs and 32 outputs
- Dual RIP: Allow one 9.3” X-BAR print module to print 2 RIPs
- Build press models and associated devices
- Windows 10. TCP/IP connection
Testimonial
“We’re able to print full letters without stitching which added more business.”
– Mickey Baraban, Digital Imaging Manager, American Litho
